60R
- |
- 60R
Technical Performance

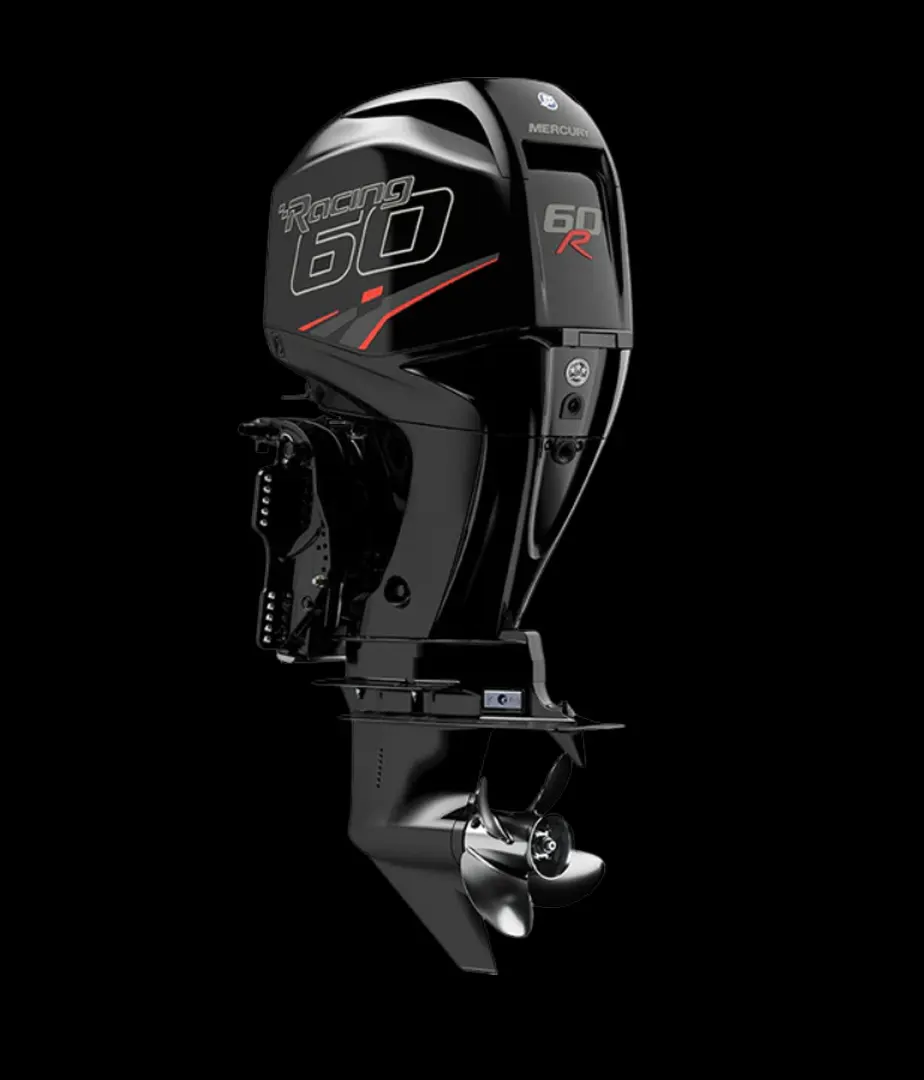

The Mercury Racing 60R outboard is a brilliant performance solution for technical flats skiffs. This lightweight, compact outboard is a powerhouse tuned and geared to deliver amazing hole-shot acceleration for instant on-plane performance in skinny water. This proven powerhead also combines outstanding fuel economy with rugged reliability and quiet operation. Get Wide Open with no compromise.
Single Overhead Cam
A single overhead camshaft cylinder head keeps the powerhead as light and slim as possible for less intrusion on the transom.

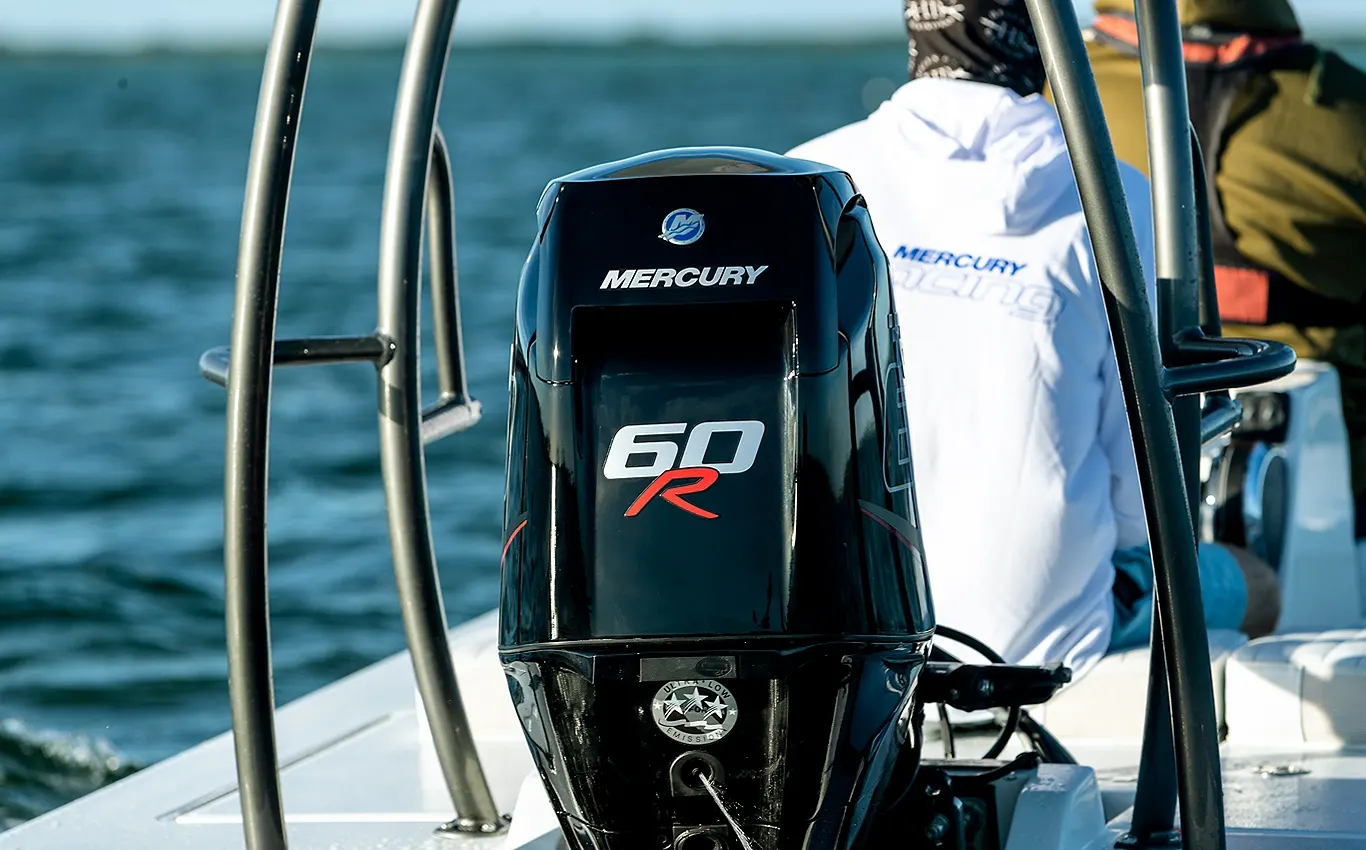

EFI
To extend range the 60R is equipped with computer-controlled electronic fuel injection (EFI). programmed to deliver outstanding fuel economy at cruising speed on 87-octane fuel.

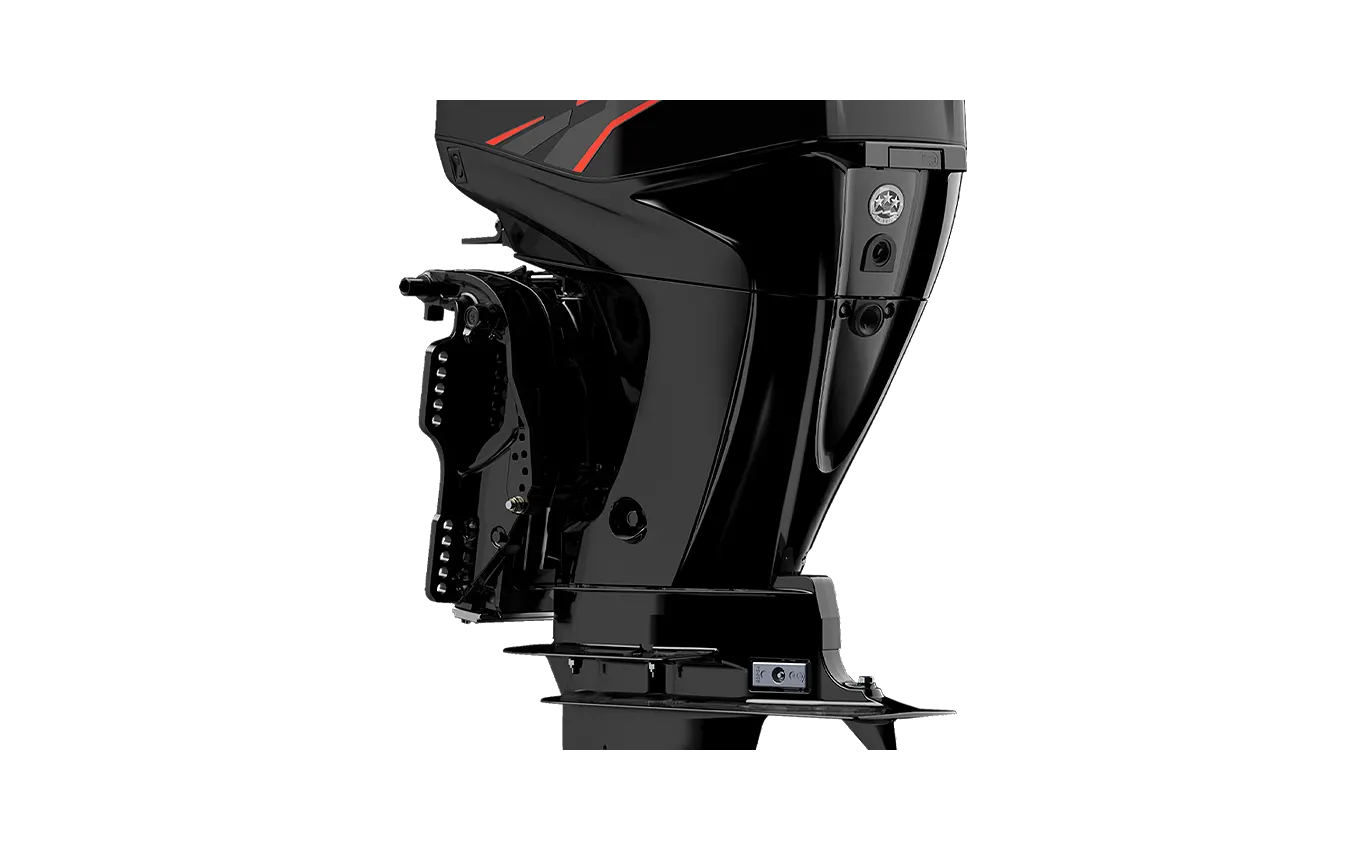

15" MIDSECTION
Sits perfectly on a 15-inch transom and under a compact poling platform to lower the center of gravity for improved stability.

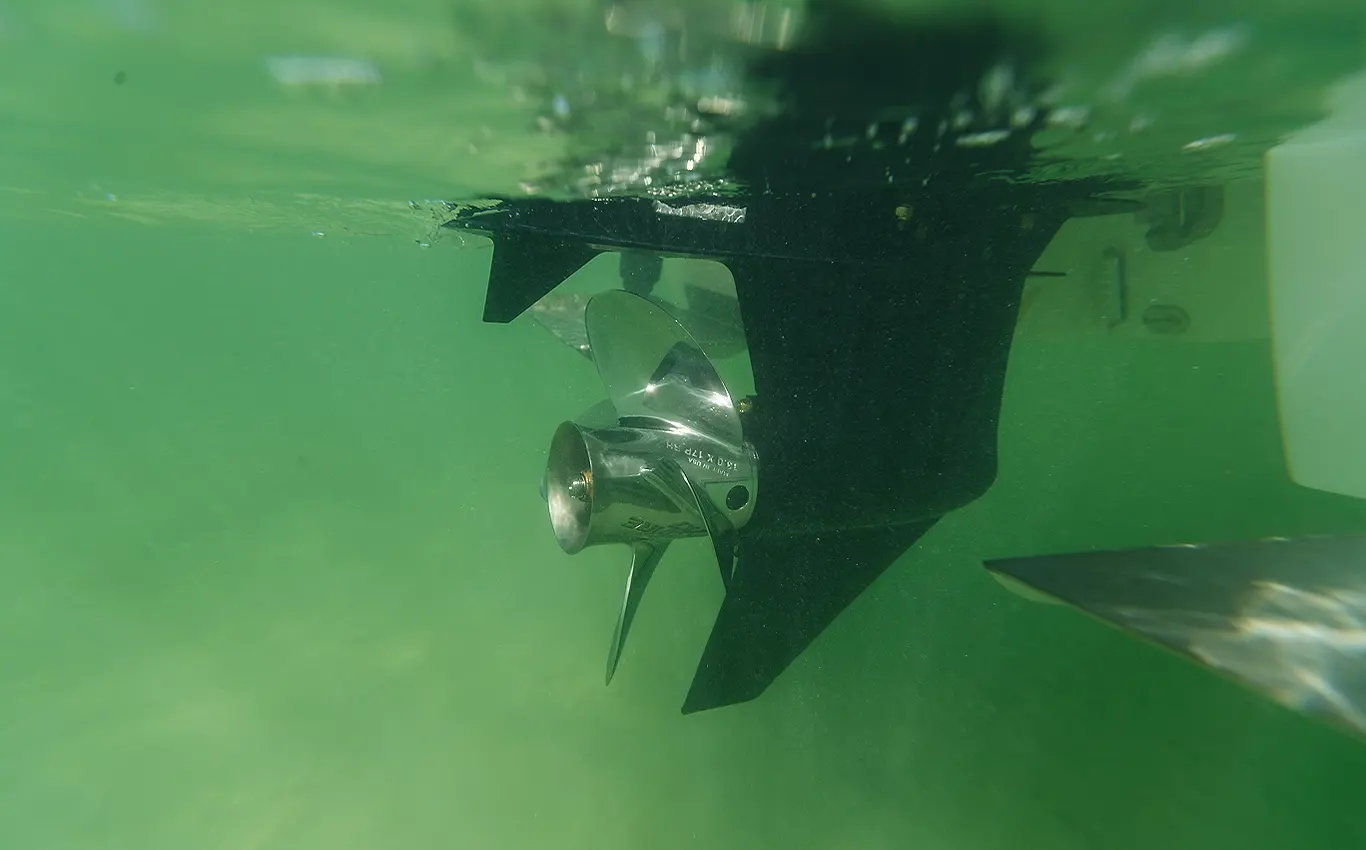

HIGH-THRUST GEARCASE
The high-thrust gearcase can handle up to 20 percent more prop-blade area than a standard gearcase and provides added lift aft to boost hole-shot performance.
Feel The Power
The dual muffler system of Advanced Sound Control offers the option of a deep sport tone with a stirring growl on start-up.
Facts & Figures
|
5600-6300
FULL THROTTLE RPM |
60
RATED HP |
L4
CYLINDERS |
1 L
DISPLACEMENT |
| Name | Description |
|---|---|
| SHAFT LENGTH | 15 |
| TRIM SYSTEM | Standard |
| MID SECTION | Standard |
| SKEG | Straight |
| WARRANTY | 3-Year² |
| INDUCTION SYSTEM | Naturally Aspirated |
| FUEL REQUIREMENT | Unleaded Regular 87 Octane Minimum (R+M/2) Or 90 RON |
| CHARGING | 18 AMP |
| IDLE CHARGE | N |
| JPO OPTION | N |
| THROTTLE & SHIFT CONTROLS | Mechanical |
| GEARCASE | 4.25-Inch Diameter, High-Thrust |
| GEAR RATIO | 2.33:1 |
| DRY WEIGHT | 268 LBS |
| MOUNTS | Hard Rubber |
| ENGINE TYPE | I-4 NA 4S |
