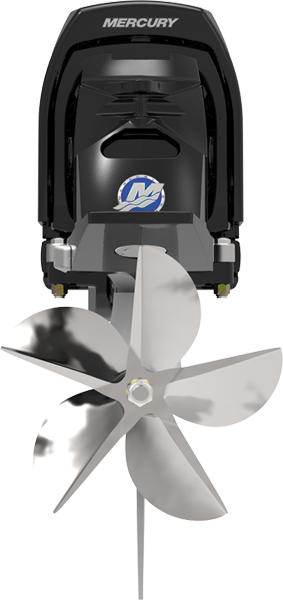

The Mercury Racing MAX 5 propeller, developed and hand-crafted by the Mercury Racing Propeller Artisans, is designed for single and multiple engine applications including the 400R outboard and 600 SCi sterndrive. The Lab Finished MAX 5 provides a measurable reduction in propeller slip, (up to 12%). In fact, the MAX 5 prop is so efficient; builders are finding they can run it higher to take full advantage of engines fitted with the race-proven Sport Master gearcase.
New 15.25-inch diameter models offer 3-4% reduction in slip compared to the 15.00-inch models on select outboard and sterndrive applications which benefit from elevated transom heights. One-half inch pitch offerings enable engines to be dialed-in to their maximum rpm operating range for enhanced throttle response, optimized cruise fuel efficiency and top speed.
Specs
15" & 15.25"
Diameter
22.3" - 34"
Pitch
LH & RH
Rotation
Lab Finish
Finish
PRODUCT DETAILS
| Engine Type | Pitch | HP Range | Speed | Diameter | Rotation | Part Number |
|---|---|---|---|---|---|---|
| FourStroke, Sterndrive | 22.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156434 |
| FourStroke, Sterndrive | 23" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156436 |
| FourStroke, Sterndrive | 23.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156438 |
| FourStroke, Sterndrive | 24" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156440 |
| FourStroke, Sterndrive | 22.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156435 |
| FourStroke, Sterndrive | 23" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156437 |
| FourStroke, Sterndrive | 23.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156439 |
| FourStroke, Sterndrive | 24" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156441 |
| FourStroke, Sterndrive | 24.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156444 |
| FourStroke, Sterndrive | 25" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156446 |
| FourStroke, Sterndrive | 25.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156448 |
| FourStroke, Sterndrive | 26" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156450 |
| FourStroke, Sterndrive | 24.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156445 |
| FourStroke, Sterndrive | 25" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156447 |
| FourStroke, Sterndrive | 25.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156449 |
| FourStroke, Sterndrive | 26" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156451 |
| FourStroke, Sterndrive | 26.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156454 |
| FourStroke, Sterndrive | 27" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156456 |
| FourStroke, Sterndrive | 27.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156458 |
| FourStroke, Sterndrive | 28" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156460 |
| FourStroke, Sterndrive | 26.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156455 |
| FourStroke, Sterndrive | 27" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156457 |
| FourStroke, Sterndrive | 27.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156459 |
| FourStroke, Sterndrive | 28" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156461 |
| FourStroke, Sterndrive | 28.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156464 |
| FourStroke, Sterndrive | 29" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156466 |
| FourStroke, Sterndrive | 29.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156468 |
| FourStroke, Sterndrive | 30" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156470 |
| FourStroke, Sterndrive | 28.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156465 |
| FourStroke, Sterndrive | 29" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156467 |
| FourStroke, Sterndrive | 29.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156469 |
| FourStroke, Sterndrive | 30" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156471 |
| FourStroke, Sterndrive | 30.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156474 |
| FourStroke, Sterndrive | 31" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156476 |
| FourStroke, Sterndrive | 31.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156478 |
| FourStroke, Sterndrive | 32" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156480 |
| FourStroke, Sterndrive | 30.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156475 |
| FourStroke, Sterndrive | 31" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156477 |
| FourStroke, Sterndrive | 31.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156479 |
| FourStroke, Sterndrive | 32" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156481 |
| FourStroke, Sterndrive | 32.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156484 |
| FourStroke, Sterndrive | 33" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156486 |
| FourStroke, Sterndrive | 33.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156488 |
| FourStroke, Sterndrive | 34" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156490 |
| FourStroke, Sterndrive | 32.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156485 |
| FourStroke, Sterndrive | 33" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156487 |
| FourStroke, Sterndrive | 33.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156489 |
| FourStroke, Sterndrive | 34" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156491 |
| FourStroke, Sterndrive | 23" | 250-600 | 80-110 | 15" | Right Hand | 8M0117982 |
| FourStroke, Sterndrive | 23" | 250-600 | 80-110 | 15" | Left Hand | 8M0117983 |
| FourStroke, Sterndrive | 23.5" | 250-600 | 80-110 | 15" | Right Hand | 8M0117984 |
| FourStroke, Sterndrive | 23.5" | 250-600 | 80-110 | 15" | Left Hand | 8M0117985 |
| FourStroke, Sterndrive | 24" | 250-600 | 80-110 | 15" | Right Hand | 8M0117986 |
| FourStroke, Sterndrive | 24" | 250-600 | 80-110 | 15" | Left Hand | 8M0117987 |
| FourStroke, Sterndrive | 25" | 250-600 | 80-110 | 15" | Right Hand | 8M0117988 |
| FourStroke, Sterndrive | 25" | 250-600 | 80-110 | 15" | Left Hand | 8M0117989 |
| FourStroke, Sterndrive | 25.5" | 250-600 | 80-110 | 15" | Right Hand | 8M0117990 |
| FourStroke, Sterndrive | 25.5" | 250-600 | 80-110 | 15" | Left Hand | 8M0117991 |
| FourStroke, Sterndrive | 26" | 250-600 | 80-110 | 15" | Right Hand | 8M0117992 |
| FourStroke, Sterndrive | 26" | 250-600 | 80-110 | 15" | Left Hand | 8M0117993 |
| FourStroke, Sterndrive | 27" | 250-600 | 80-110 | 15" | Right Hand | 8M0117994 |
| FourStroke, Sterndrive | 27" | 250-600 | 80-110 | 15" | Left Hand | 8M0117995 |
| FourStroke, Sterndrive | 27.5" | 250-600 | 80-110 | 15" | Right Hand | 8M0117996 |
| FourStroke, Sterndrive | 27.5" | 250-600 | 80-110 | 15" | Left Hand | 8M0117997 |
| FourStroke, Sterndrive | 28" | 250-600 | 80-110 | 15" | Right Hand | 8M0117998 |
| FourStroke, Sterndrive | 28" | 250-600 | 80-110 | 15" | Left Hand | 8M0117999 |
| FourStroke, Sterndrive | 29" | 250-600 | 80-110 | 15" | Right Hand | 8M0118000 |
| FourStroke, Sterndrive | 29" | 250-600 | 80-110 | 15" | Left Hand | 8M0118001 |
| FourStroke, Sterndrive | 29.5" | 250-600 | 80-110 | 15" | Right Hand | 8M0118002 |
| FourStroke, Sterndrive | 29.5" | 250-600 | 80-110 | 15" | Left Hand | 8M0118003 |
| FourStroke, Sterndrive | 30" | 250-600 | 80-110 | 15" | Right Hand | 8M0118004 |
| FourStroke, Sterndrive | 30" | 250-600 | 80-110 | 15" | Left Hand | 8M0118005 |
| FourStroke, Sterndrive | 31" | 250-600 | 80-110 | 15" | Right Hand | 8M0118006 |
| FourStroke, Sterndrive | 31" | 250-600 | 80-110 | 15" | Left Hand | 8M0118007 |
| FourStroke, Sterndrive | 31.5" | 250-600 | 80-110 | 15" | Right Hand | 8M0118008 |
| FourStroke, Sterndrive | 31.5" | 250-600 | 80-110 | 15" | Left Hand | 8M0118009 |
| FourStroke, Sterndrive | 32" | 250-600 | 80-110 | 15" | Right Hand | 8M0118010 |
| FourStroke, Sterndrive | 32" | 250-600 | 80-110 | 15" | Left Hand | 8M0118011 |
| FourStroke, Sterndrive | 33" | 250-600 | 80-110 | 15" | Right Hand | 8M0118012 |
| FourStroke, Sterndrive | 33" | 250-600 | 80-110 | 15" | Left Hand | 8M0118013 |
| FourStroke, Sterndrive | 33.5" | 250-600 | 80-110 | 15" | Right Hand | 8M0118014 |
| FourStroke, Sterndrive | 33.5" | 250-600 | 80-110 | 15" | Left Hand | 8M0118015 |
| FourStroke, Sterndrive | 34" | 250-600 | 80-110 | 15" | Right Hand | 8M0118016 |
| FourStroke, Sterndrive | 34" | 250-600 | 80-110 | 15" | Left Hand | 8M0118017 |
