Race Proven

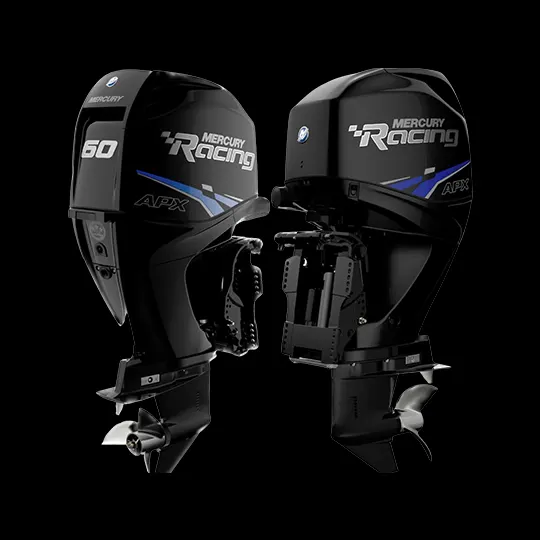

60 APX



Pure Competition

All the adrenaline of the legendary Apex competition series, in a lightweight, compact package. That’s the 60 APX outboard. It’s designed specifically for up-and-coming racers competing in UIM Formula 4 class competition, and has been expertly tuned to run at a wide-open throttle limit of 6000-6400 rpm. Built on a durable, proven four-stroke powerhead, the 60 APX can run out front all season long, while requiring minimal maintenance off the water. So racers can spend more hours where they belong: on the track, honing their skills.

Small But Mighty

Delivering race-winning performance in a lightweight, compact package, the 60 APX outboard motor brings a bold new look for the next generation of Wide Open.

Specifications Of 60-APX

6000-6400
FULL THROTTLE RPM 		60
RATED HP 		L4
CYLINDERS 		60.7 CID
DISPLACEMENT
Name Description
TRIM SYSTEM Power Trim and Tilt
MID SECTION 15" Midsection with Solid Mounts Integral Power Trim System
BORE & STROKE 2.56 x 2.95 IN/65 x 75 MM
INDUCTION SYSTEM Long Runner Intake Manifold
FUEL REQUIREMENT Unleaded Regular 87 Octane Minimum (R+M/2) Or 90 RON 10% Ethanol Maximum
FUEL SYSTEM Electronic Fuel Injection (EFI) Computer Controlled
IGNITION SYSTEM SmartCraft ECM 70 Digital Inductive
CHARGING 18 AMP
STARTING 12V Electric Start with SmartStart Protection
EXHAUST SYSTEM Through Prop
OIL REQUIREMENT NMMA Certified FCW SAE 10W-30
GEAR RATIO 1.83
GEARCASE 3.4"
DRY WEIGHT 247 LBS
ENGINE TYPE L4
COOLING SYSTEM Water-cooled with Thermostat Control
LUBRICATION SYSTEM Structural Wet Sump
GEAR SHIFT F-N-R
EMISSIONS LEVEL CARB/EPA 3-Star EU RCD II
STEERING Compatible with side-steering
STEERING ANGLE +/- 30 degrees
OIL CAPACITY 3.0 (qts) 2.8 (L)
THROTTLE AND SHIFT CONTROLS Mechanical Throttle and Shift
IDLE RPM 725
TILT RANGE 71° (-4° to 67°)
TRIME RANGE 20° (-4° to 16°)
ENGINE MANAGEMENT SYSTEM SmartCraft ECM 70
ENGINE PROTECTION SYSTEM SmartCraft Engine Guardian
