Proven Powerhouse

565 SCI



Flex Some Muscle

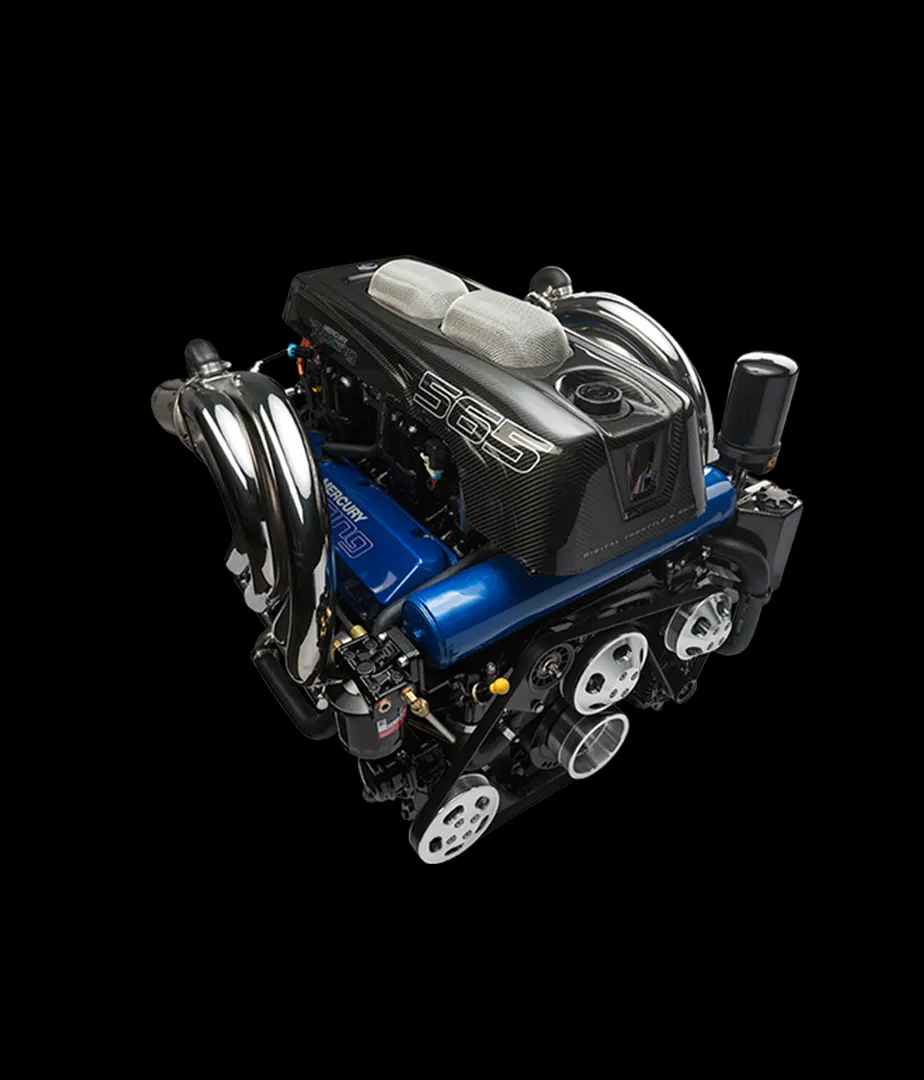

The 565 sterndrive combines the proven performance of big block power with the creature comforts of digital throttle and shift. A stroked, 8.7 liter cylinder block combined with high-performance cylinder heads, multiport fuel injection and twin electronic throttle bodies results in a whopping 565 horsepower that’s sure to blow your hair back. This power comes from 89 posted octane fuel; making this naturally aspirated powerhouse a natural for high performance vee bottoms and catamarans as well as sport cruisers.

Specifications Of 565 SCI

565
RATED HP AT TRANSOM 		5000-5400
FULL THROTTLE RPM 		8.7 L
DISPLACEMENT (L) 		8.7:1
COMPRESSION RATIO
Name Description
CYLINDERS / ENGINE CONFIGURATION V8
FUEL REQUIREMENT 89 Octane Minimum (R + M)/2
FUEL SYSTEM Sequential Fuel Injection
GEAR RATIO 1.35:1, 1.50:1
WARRANTY 2-Year Limited For Recreational Boating
WARRANTY 3-Year²
BORE & STROKE 4.466 x 4.25 IN/113 x 108 MM
ALTERNATOR (AMP) 90 AMP
CONTROLLER 1 X PCM; 1 X TCM
DRIVE UNIT Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master, (Std. Or Short), (Integrated Transom System Optional)
LENGTH (IN) - FROM BACK OF BLOCK 34.2 IN
WIDTH (IN) 33.8 IN
HEIGHT (IN) 26.9 IN (From crankshaft center)
WEIGHT (LBS) 1201 LBS
