300R
- |
- 300R
Flex Some Muscle
Tuned up with Mercury Racing components to deliver blistering speed, the V8 4.6L 300R outboard delivers crisp throttle response, thrilling top-end power and confident control, the perfect match for a wide variety of high-performance boats. The 300R midsection and gearcase options, tie-bar and steering choices allow the creation of a near-custom configuration to provide optimal performance and ease of installation for most applications, including re-power upgrades.

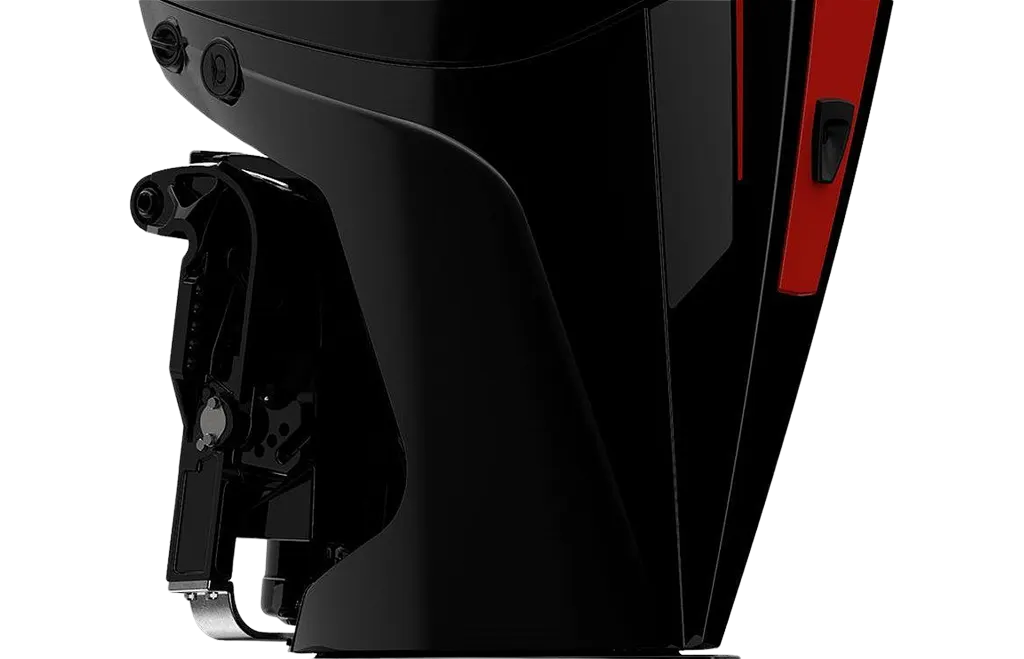

Midsection Options
The Mercury Racing 300R outboard is offered with three midsection choices, each designed for specific performance applications.

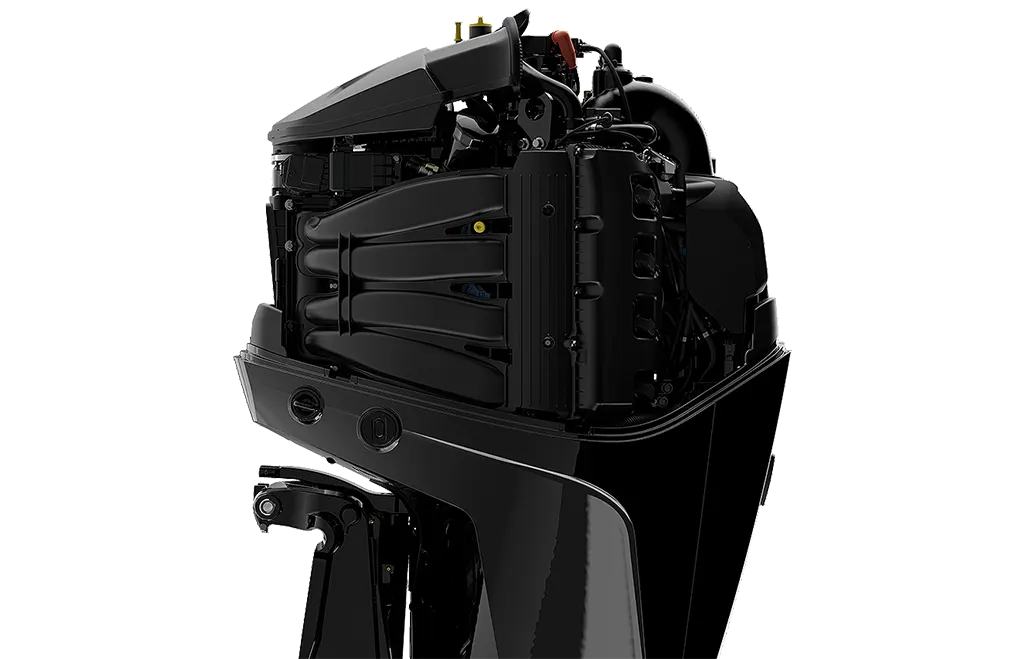

Short Runner Intake
To extract maximum performance, the Racing 300R is equipped with a Mercury Racing-designed short-runner intake, high-performance intake camshafts, an oil cooler and a performance-optimized ECU calibration that increases the WOT range to 6400 RPM.
Tie-Bar Option
An optional rear tie-bar bracket integral to the Mercury Racing AMS provides a strong, ultra-light mounting point for precision steering in ultra-high-speed applications. Select HD CMS models are available with optional rear tie-bar mounting plates and side steering brackets for high speed applications when using the Sport Master gearcase.

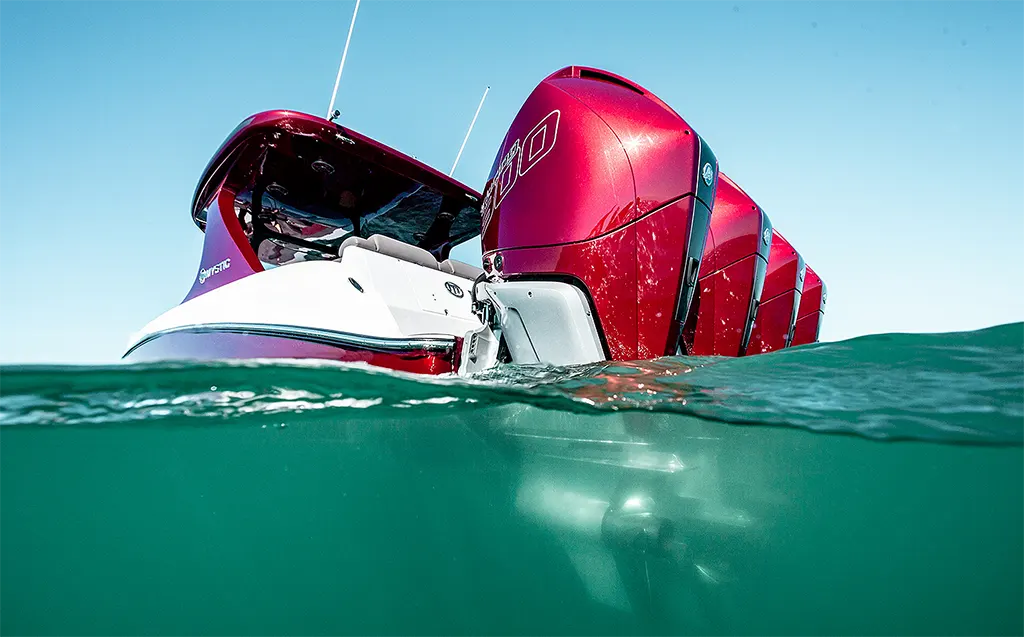

Gearcase Options
Three gearcase options are available for the 300R outboard, each design for a specific high-performance application.

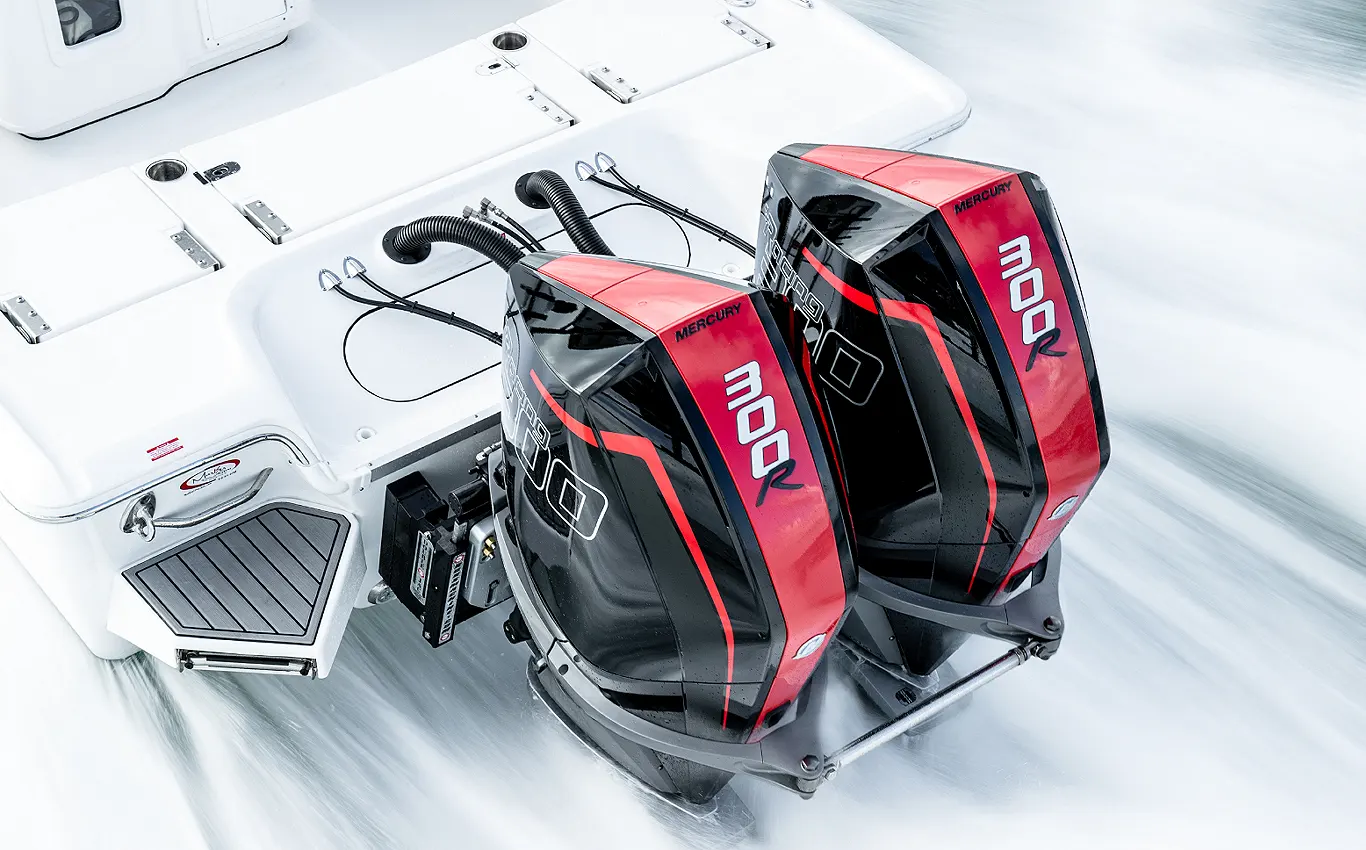

Go Farther, Faster
The Racing 300R is designed to make full power on readily available 87-octane fuel. To squeeze more power from less fuel Advanced Range Optimization (ARO), a closed loop fuel-control system, utilizes electronic sensors to precisely adjust the fuel mixture for the best-possible efficiency at all speeds. Mercury Racing 300R is engineered to be reliable and durable. A rugged midsection is designed to handle all the high-performance abuse the water can dish out. Superior protection against corrosion begins with the industry’s lowest-copper aluminum alloy and exclusive, comprehensive finish treatments. These high-performance outboards are tested, tested and tested again – in the lab and on the water – in a never-ending quest to exceed the highest expectations.
Facts & Figures
|
5800-6400
FULL THROTTLE RPM |
300
RATED HP |
V8
CYLINDERS |
4.6 L
DISPLACEMENT |
| Name | Description |
|---|---|
| SHAFT LENGTH | 20, 25, or 30 |
| TRIM SYSTEM | Standard or Heavy Duty |
| MID SECTION | Standard, Heavy Duty or Racing AMS |
| SKEG | Camber or Straight |
| WARRANTY | 3-Year² |
| BORE & STROKE | 3.6 x 3.4 IN/92 x 86 MM |
| INDUCTION SYSTEM | Custom Racing Short-Runner Intake Manifold |
| FUEL REQUIREMENT | Unleaded Regular 87 Octane Minimum (R+M/2) Or 91 RON 10% Ethanol Maximum |
| FUEL SYSTEM | Electronic Fuel Injection (EFI) Computer Controlled With Advanced Range Optimization |
| IGNITION SYSTEM | Digital Inductive |
| CHARGING | 115 (AMS) / 85 (CMS) |
| IDLE CHARGE | Yes |
| STARTING | Electric Start With SmartStart Protection |
| OIL REQUIREMENT | NMMA Certified FCW SAE 10W-30 |
| JPO OPTION | N (CMS), Optional (AMS) |
| THROTTLE & SHIFT CONTROLS | DTS (AMS), DTS or Mechanical (CMS) |
| GEARCASE | Torque Master, Sport Master or 5.44 HD |
| GEAR RATIO | 1.85 (AMS), 1.75:1 (CMS) or 1.60:1 (CMS, AMS) |
| DRY WEIGHT | 512 LBS |
| CARB STAR RATING | 3 |
| MINIMUM CENTERLINE MOUNTING DISTANCE (IN) | 26 |
| STEERING | Electro-Hydraulic Power Steering |
| TIE BAR OPTION | Integrated (AMS), Bracket (CMS) |
| IDLE RPM | 600 |
| MOUNTS | Hard Rubber or Solid |
| ENGINE TYPE | V-8 NA 4S |
| LUBRICATION SYSTEM | Integrated Wet Sump |
| GEAR SHIFT | F-N-R |
| ENGINE MANAGEMENT SYSTEM | SmartCraft PCM 112 |
| ENGINE PROTECTION SYSTEM | SmartCraft Engine Guardian |
| EXHAUST SYSTEM | Selectable |
| OIL CAPACITY | 6.6L |
| STEERING ANGLE | '+ / - 30° |
