Electric Joy 1.2

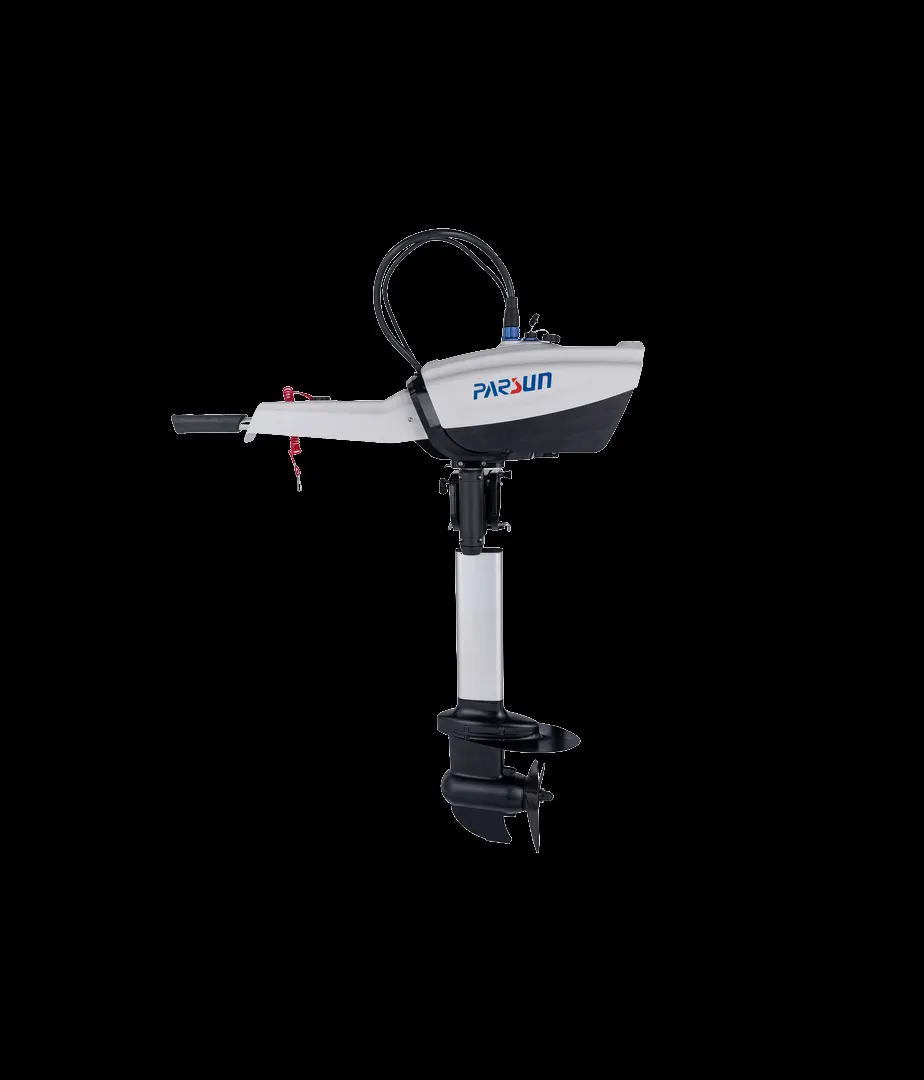

The Joy 1.2 is a lightweight, highly portable electric outboard that delivers performance comparable to a 3 HP gasoline engine. Its integrated 1440 Wh battery combines dependable power with a compact design, making it a versatile choice for a wide range of boating adventures—ideal for boaters seeking convenience without compromising performance.
Power Meets Portability
The outboard and battery feature a modular, detachable design, making the system exceptionally easy to carry, transport, and store. Its compact footprint saves valuable space - whether aboard your boat, in your vehicle, or at home. Lightweight - The complete system weighs just 20 kg for effortless handling. Compact Storage -The outboard can be quickly disassembled for convenient transport and space-saving storage. Folding Tiller - Folds neatly for compact packing and quick, effortless setup.

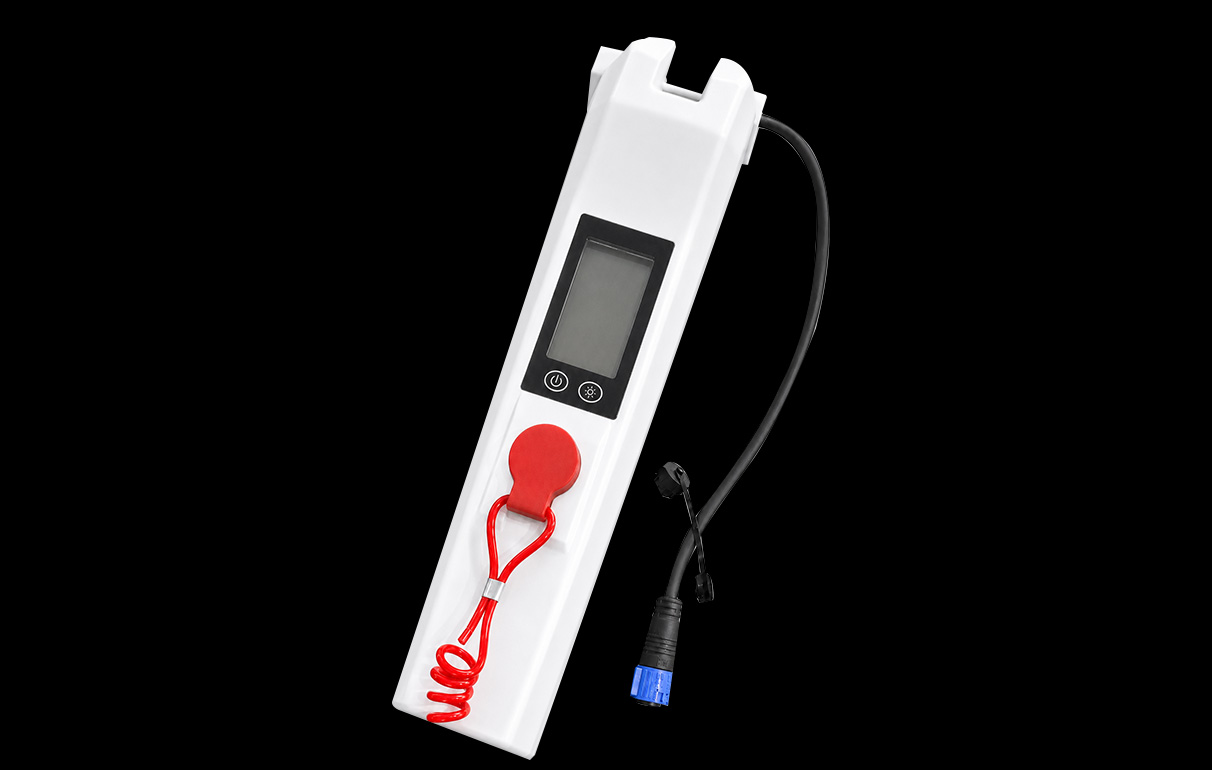

Digital Display
Stay in control with real-time data on power output, remaining runtime, battery level, operating voltage, and more.
Specifications Of 200HP
| Name | Description |
|---|---|
| POWER | 6 kW |
| STANDARD BATTERY | 8960Wh × 1 (Single box use) 4096Wh × 2 (Parallel operation) |
| RATED VOLTAGE | 48V |
| MOTOR WEIGHT | 35 ± 1 kg |
| BATTERY WEIGHT | 88 kg (8960Wh) 47 kg (4096Wh × 1) |
| STANDARD CHARGING CURRENT | 50A |
| FAST CHARGING CURRENT | - |
| BATTERY BUILT-IN | NO |
| RPM | 1550 rpm |
| TILT ANGLE | Max 60° |
| SHAFT LENGTH | 570 (L) / 442 (S) mm |
| CONTROL MODE | Tiller control / Remote control |
| DRIVE | Direct drive |
| MAX STATIC THRUST | 1170 N |
| GEAR | F-N-R |
| TRIM MODE | Manual |
| WATERPROOF LEVEL | IP67 |
| PROPELLER OPTIONS (IN.) | 3-16¼" × 17" |
| WEIGHT (KG) | ≈370 |
| RECOMMENDED TYPE OF DIESEL | 0# / ULSD / EN590 |
| CERTIFICATE | CE / CCS / EPA |
